SKU: 6941545607450
Category: Best deals , Shop Online , Smart Home , Smart Entry
Availability: 1
For Installation Kindly Contact
98987295-22289170.
Charges apply accordingly
Easy Return, Quick Refund. See more.
| Model | CS-DB2-A0-2C5WPFBR—B |
|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|---|---|
| Lens | 2.0 mm @ F2.0, viewing angle: 176° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching |
| IR Range | Up to 5 m / 16 ft |
| Max. Resolution | 2544 × 1888 |
|---|---|
| DNR | 2D/3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Protocol | EZVIZ Cloud Proprietary Protocol |
|---|---|
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| Detection | PIR Motion Detection, Smart Human Motion Detection |
|---|---|
| PIR Angle | 100° |
| PIR Distance | Up to 5 m / 16 ft |
| Sensitivity | Adjustable (High, Medium and Low Sensitivity) |
| Tamper Alarm | Sound and light anti-dismantling alarm |
| Two-way Talk | Supports |
| Dimensions | 101 × 64 × 32 mm (3.98 × 2.52 × 1.26 inch) |
|---|---|
| Power Supply | AC 110 ~ 240V |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Ringtone | Supports up to 20 options with adjustable volume |
| Audio Output | Built-in high-power speaker (Up to 72 dB in 1 meter) |

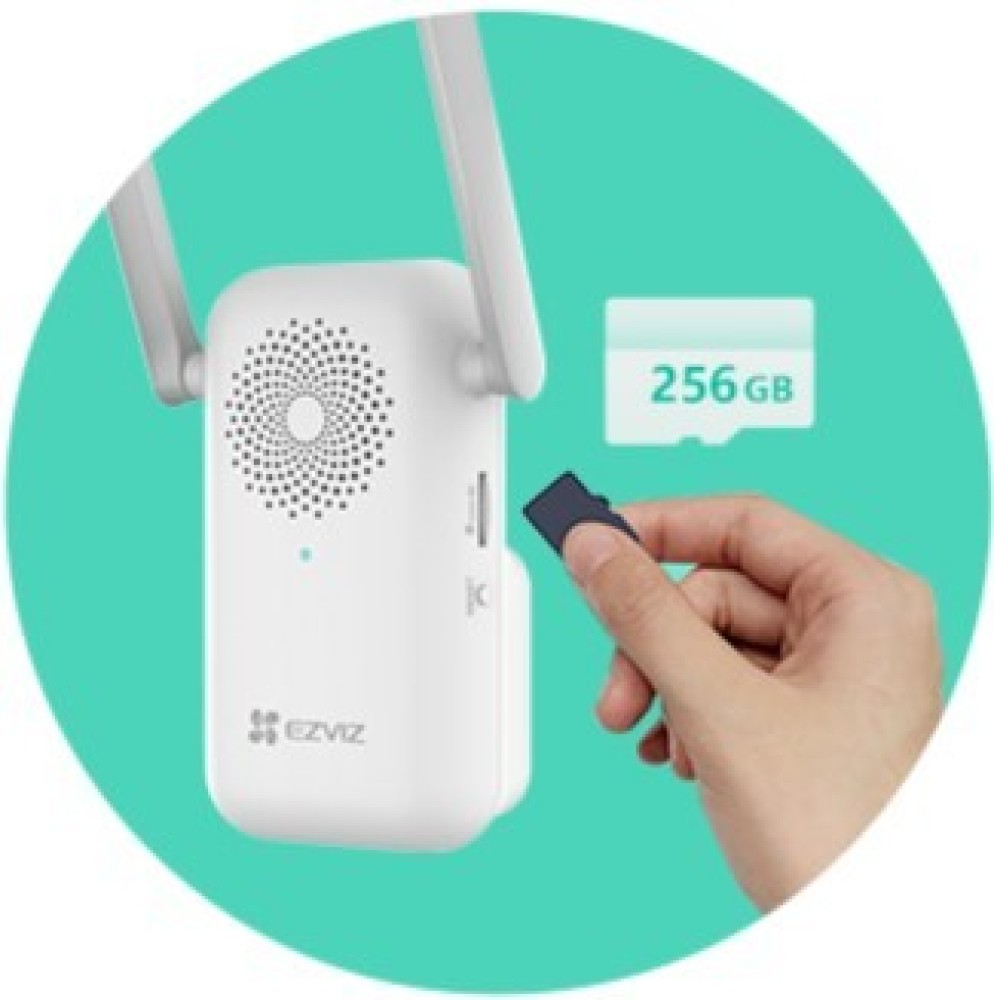

| Storage | Supports microSD card (Up to 256 GB) |
| Net Weight | 87 g (3.07 oz) |

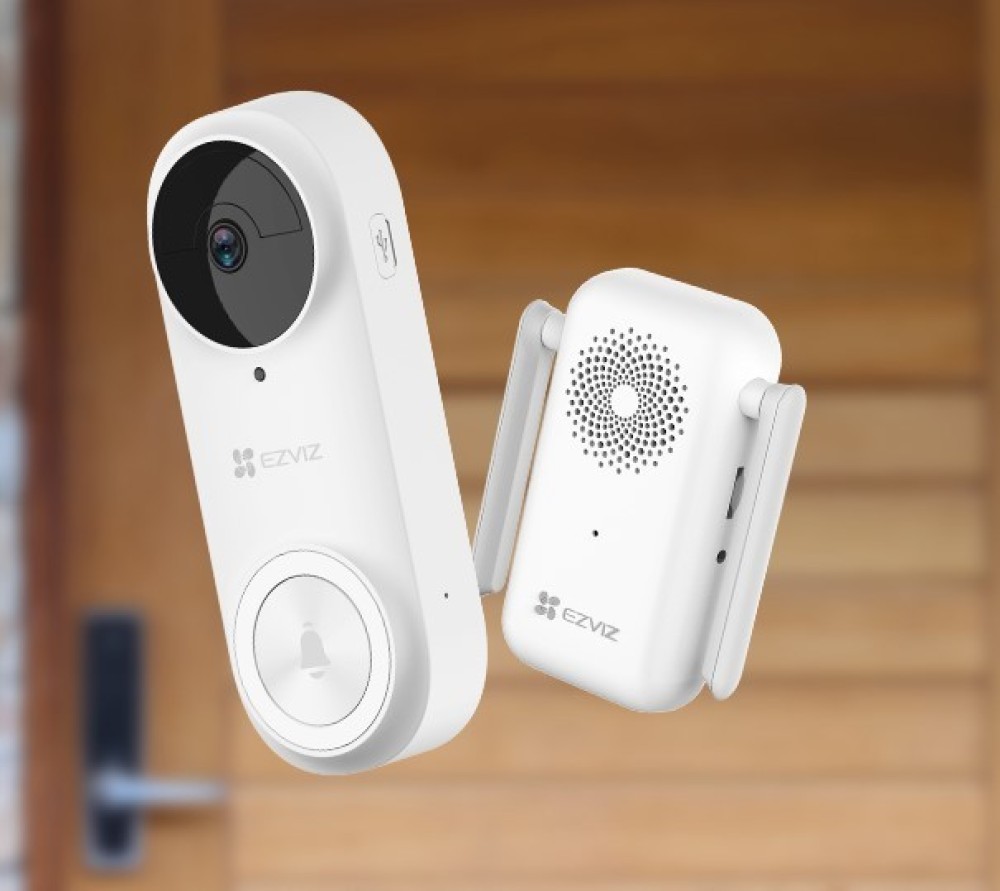

| In the box | - DB2-B Pro Video Doorbell |
|---|---|
| - Chime | |
| - Mounting Plates | |
| - Inclined Mounting Plates (2) | |
| - Screwdriver and Screw Kits (2) | |
| - Foam Sticker | |
| - Plate Foam | |
| - Drill Template | |
| - Pin | |
| - U-shaped Wire and Wire Connectors (3) | |
| - Power Cable | |
| - Quick Start Guide | |
| - Installation Guide | |
| - Regulatory Information |
| Power Supply | DC 5V (± 10%) 2A |
|---|---|
| Power Consumption | Max.2W |
| Battery Capacity | 5200 mAh rechargeable lithium battery |
| Dimensions | 150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch) |
|---|---|
| Net Weight | 244 g (8.61 oz) |
| Weight (With Package) | 655 g (23.10 oz) |
| IP Grade | IP65 |
| Operation Conditions | -20°C to 50°C (-4°F to 122°F), humidity 95% or less (non-condensing) |
| Reset Button | Yes |
| Certifications | UL / CE / FCC / REACH / WEEE / RoHS |
|---|
No review found.
