SKU: 6941545618661
Category: Security Cameras , Indoor Wifi Cameras , Shop Online
Availability: 10
For Installation Kindly Contact
98987295-22289170.
Charges apply accordingly
Easy Return, Quick Refund. See more.
| Model | CS-H6-R100-1J5WF |
|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS | |
|---|---|---|
| Shutter Speed | Self-adaptive shutter | |
| Lens | 4mm@ F1.6, view angle:87ยฐ (Horizontal), 53ยฐ (Vertical), 104ยฐ(Diagonal) | |

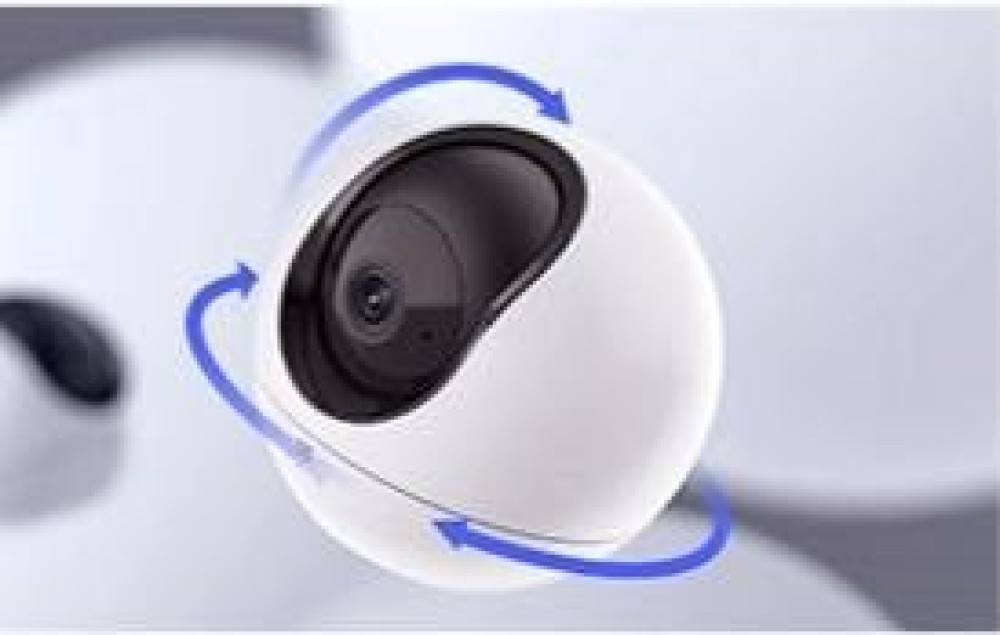

| PT Angle | Pan: 353ยฐ , Tilt: 133ยฐ | |
| Minimum Illumination | 0.51Lux @(F1.6, AGC ON), 0 Lux with IR | |
| Lens Mount | M12 | |
| Day & Night | IR-cut filter with auto-switching | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| BLC | Supports | |
| Night Vision | 10 m |
| Max. Resolution | 2880 ร 1620 | |
|---|---|---|
| Frame Rate | Max:25fps; Self-Adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. | |
| Audio Bit Rate | Self-Adaptive | |
| Max. Bitrate | 4 Mbps |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac | |
|---|---|---|
| Frequency Range | 2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz๏ผ5735~5835 MHz | |
| Channel Bandwidth | Supports 40 MHz | |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK | |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7 | |
| Wi-Fi Pairing | AP pairing | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| Wired Network | RJ45 ร 1 (10M / 100M Adaptive Ethernet Port) |
| Smart Alarm | AI-Powered Human Shape Detection / Pet Detection / Waving-Hand Detection / Voice Activity Detection | |
|---|---|---|
| Customized Alert Area | Supports | |
| Two-Way Talk | Supports ( Double Mic ) | |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Local Storage | Micro SD card slot (Max. 512G) |
|---|
| In the box | - H6 Camera | |
|---|---|---|
| - Base | ||
| - Power Cable | ||
| - Power Adapter | ||
| - Drill Template | ||
| - Screw Kit | ||
| - Quick Start Guide | ||
| - Regulatory Information |
| Operating Conditions | -10ยฐC to 45ยฐC ( 14ยฐF to 113 ยฐF ), humidity 95% or less (non-condensing) | |
|---|---|---|
| Power Supply | DC 5V/2A๏ผType-C) | |
| Power Consumption | Max. 8W | |
| Product Dimensions | 115.5 ร 116 ร 160 mm (4.55 ร 4.57 ร 6.30 inch) | |
| Packaging Dimensions | 116 ร 116 ร 164 mm (4.57 ร 4.57 ร 6.46 inch) | |
| Weight (With Package) | 487 g (17.18 oz) | |
| Net Weight | 255 g (8.99 oz) |
CE / UKCA / UL / WEEE / RoHS / REACH
