Image Sensor 1/2.7” Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

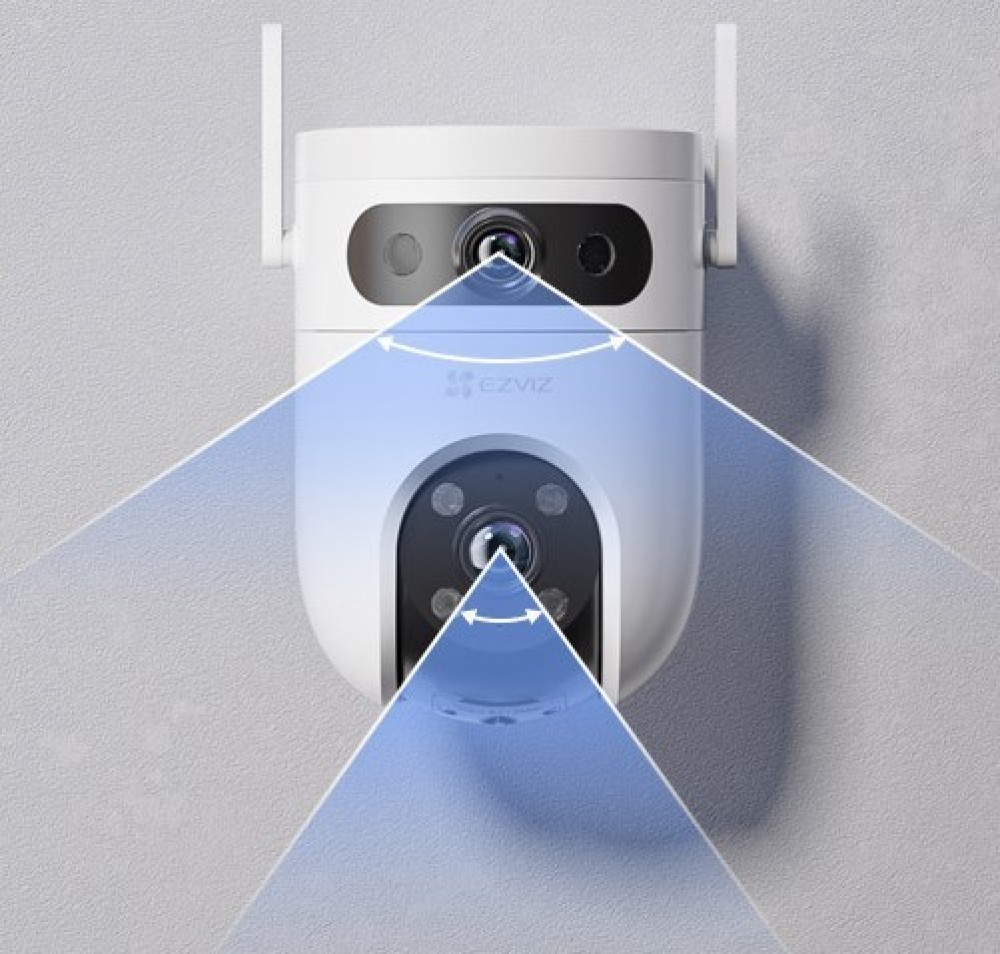

Lens Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29°

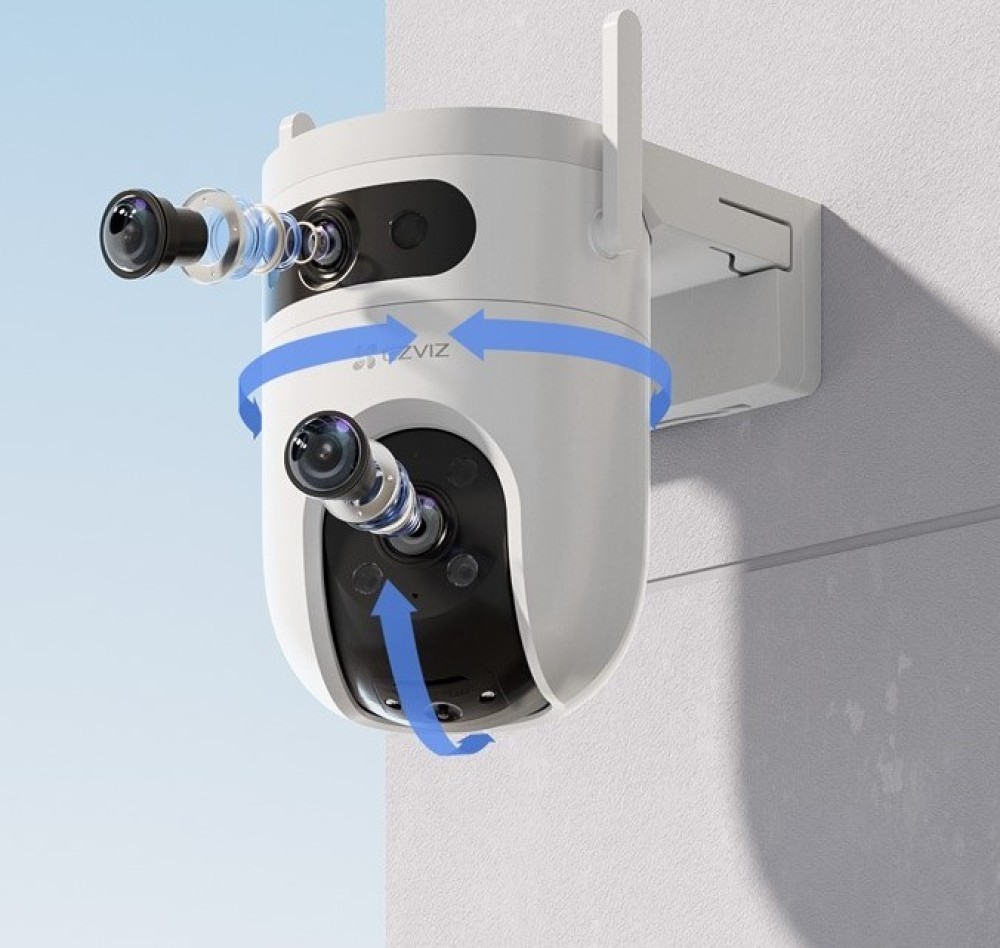

PT Angle

• Pan: 350°, Tilt: 80°

Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)

Lens Mount

Day & Night IR-cut filter with auto-switching

DNR 3D DNR

Black & White Night IR-cut filter with auto-switching

Max. Resolution. 2880 × 1620

Frame Rate. Max:15fps; Self-Adaptive during network transmission

Video Compression. H.265 / H.264

Video Bit Rate. Ultra-HD; Hi-Def; Standard. Adaptive bit rate

Audio Bit Rate. Self-Adaptive

Wi-Fi Standard

• IEEE802.11b, 802.11g, 802.11n

Frequency Range

• 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

• Supports 20MHz

Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps

Wi-Fi Pairing AP pairing

Protocol

• EZVIZ cloud proprietary protocol

Interface Protocol EZVIZ cloud proprietary protocol

Wired Network RJ45 × 1(10M/100M Adaptive Ethernet Port)

Security

• WPA-PSK/WPA2-PSK

Smart Alarm AI-Powered Human / Vehicle Shape Detection /Motion Detection

Auto Tracking

• Supports

Customised Alert Area Supports

Two-Way Talk Supports

Preset Locations

• Supports

General Function

• Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Local Storage Micro SD Card Slot (Up to 512GB)

Cloud Storage EZVIZ Cloud Storage

Operating Conditions -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)

IP Grade Weatherproof Design

Power Supply DC 12V/1.5A

Power Consumption MAX. 12W

Package Dimensions 150 × 150 × 194 mm(5.90 × 5.90 × 7.64 inch)

Weight (Camera) Weight: 668 g

Weight (With Package) Package: 960 g

Certifications CE / UKCA/WEEE / RoHS / REACH
